Inspeed Mag Mount 3-Cup Portable Anemometer

$113.00 USD
$113.00 USD

Inspeed's portable "Mag Mount" Anemometer is a rugged, affordable solution for measuring wind speed where AC power may not be available. This anemometer package includes a wire-equipped wind sensor, digital display, and aluminum bracket with two mounting holes, so you only need a pole to mount it to.

Features You'll Love:

  • Ready to go out of the box - just connect the wind sensor to the display and it's working. Comes calibrated in mph.

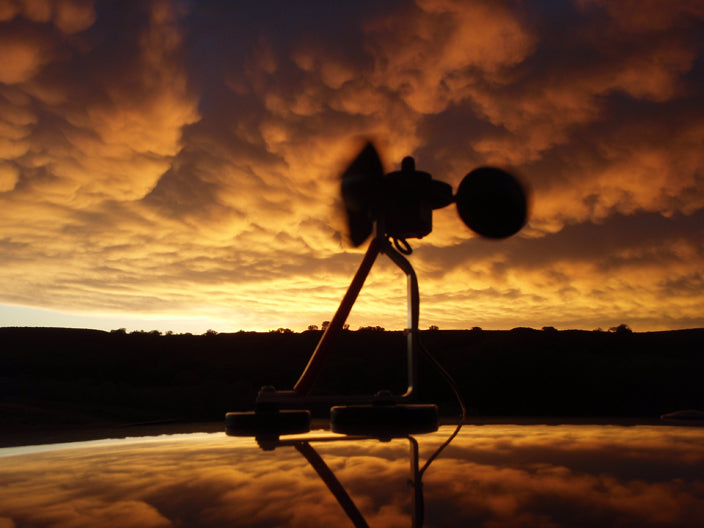

  • High strength magnetic mount sticks to any magnetic surface (designed for storm chasing)
  • Sapphire bearing provides exceptional sensitivity to gentle breezes.
  • Accurate readings even at wind speeds exceeding 100 mph.
  • Use it anywhere - home, RV, mobile or fixed installations.
  • Thousands in use across the world
Compare Ask a question Share
Product Details

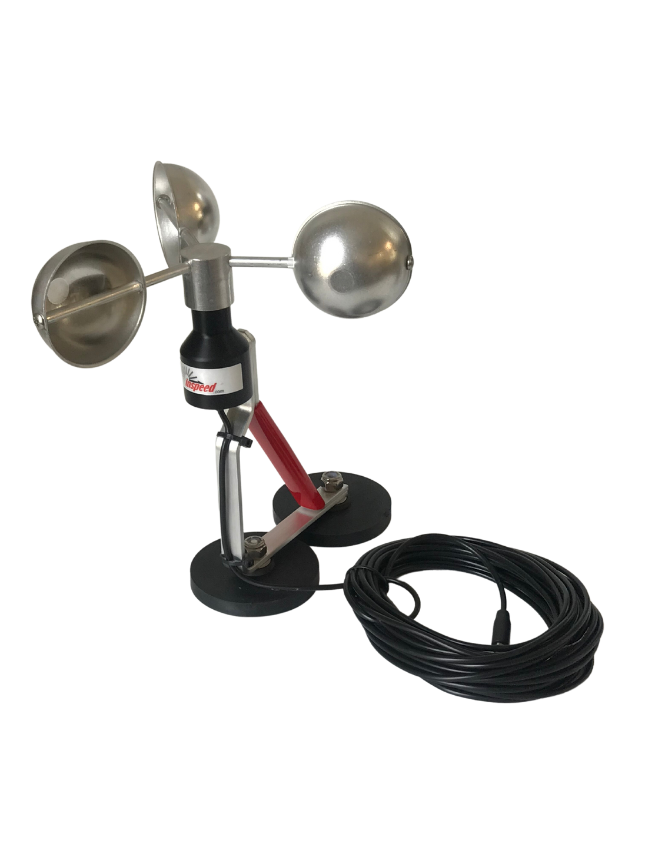

Inspeed's Portable Mag Mount 3-Cup Anemometer

Inspeed's rugged and affordable Magnetic Mount Anemometer combines a high quality, Inspeed-designed, made In America wind speed sensor with a bicycle speedometer to accurately monitor wind speeds up to 125 mph (sadly the 200 mph option is no longer available from Sigma Sport).

Stick the wind speed sensor to your metal surface (vehicle crane cab, whatever), route the 25' wire however you wish and stick the display on the glass, a window, or anywhere you want. Then, connect the display and voila-you’re ready to measure wind speed!  Great for folks who want to know how fast the wind is blowing without spending $350, and for sites where AC power may not be available.

Rubber coated magnets have a very strong "stick" and will not damage your vehicle or surface.

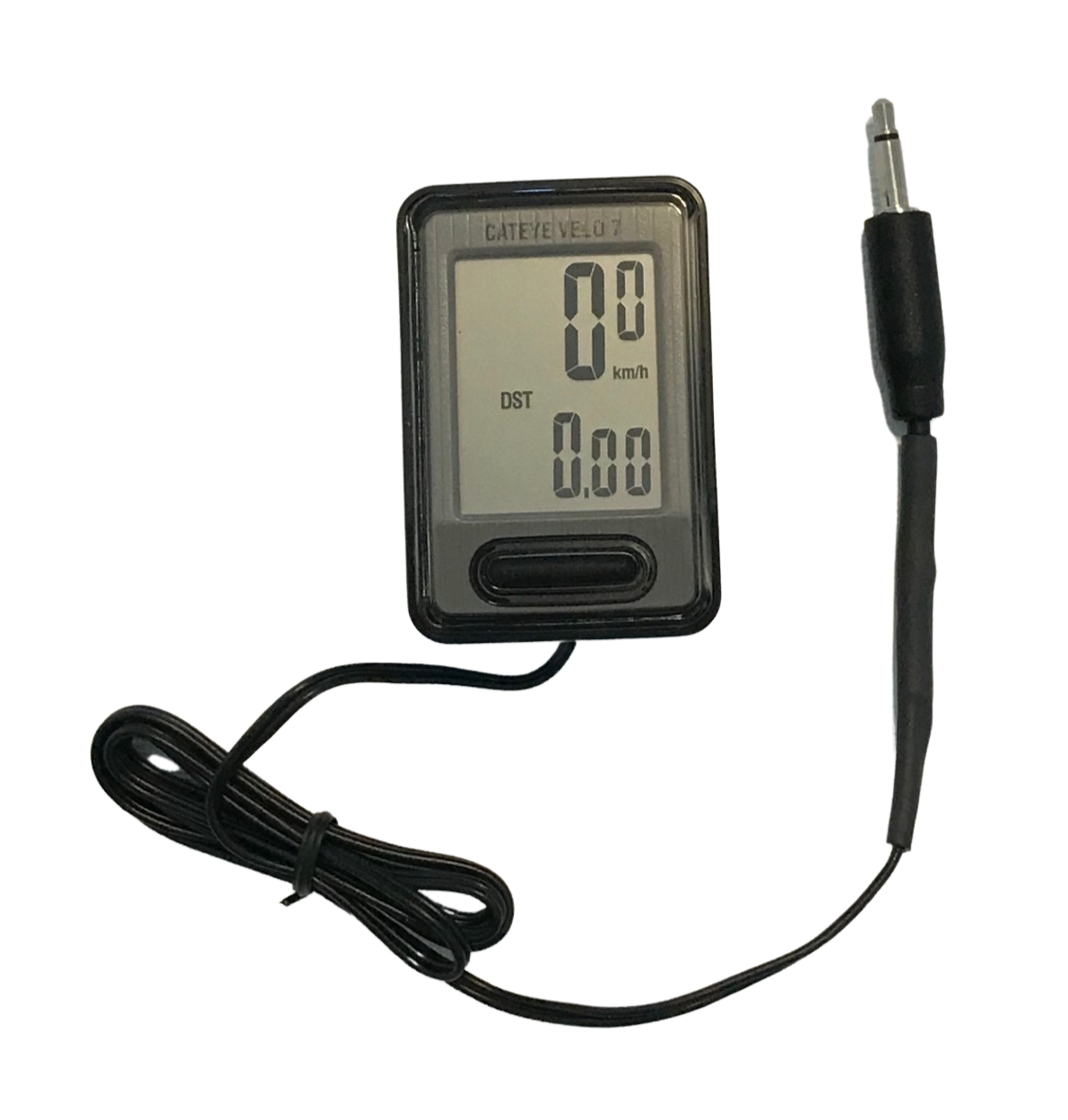

The display is a bicycle speedometer:  the Cateye Velo7, with a maximum speed of 125mph (sadly Sigma Sport discontinued the MC10 so the 200mph option is no longer available).

We use bicycle speedometers because they give you the biggest bang for the buck:  low cost, fast update rates, dual display of current speed along with your choice of max or average.

The mag mount comes standard with 10', 15', 20' or 25' of wire.  If you need something special, don't hesitate to reach out to us - we will see what we can do!

Display Details

The anemometer display is a bicycle speedometer - one of two models:

  1. Cateye Velo7: limited to a maximum speed of 125mph
  2. Sigma Sport MC10: limited to a maximum speed of 200 mph.

We use bicycle speedometers because they give you the biggest bang for the buck:  low cost, fast update rates, dual display of current speed along with your choice of max or average.

Specifications

Accuracy

  • 0.5 mph from 4 to 10 mph
  • the greater of 1mph or +/-4% of reading from 10 to 50 mph
  • estimated within 4% of reading above 50 mph (cannot find a calibration service to verify the accuracy above ~50mph)

Speed Range

~3 mph to 200 mph (~5 kph to over 200 kph)

Speed Resolution

  • Top Anemometer Display (Current Speed): 0.5 mph
  • Bottom Anemometer Display (Max, Average, etc.): 0.01 mph

Display

The display is a bicycle speedometer - one of two models:

  1. Cateye Velo7: limited to a maximum speed of 125mph
  2. Sigma Sport MC10: limited to a maximum speed of 200mph

We use bicycle speedometers because they give you the biggest bang for the buck:  low cost, fast update rates, dual display of current speed along with your choice of max or average.

Digit Size

  • Top Display (Current Speed): 10mm (approx. 1/2")
  • Bottom Display (Max, Average, etc.): 5mm (approx. 1/4")

Power

CR2032 Coin Battery located in the display - not the rotor/head

  • Battery life 1 to 3 years of intermittent, occasional use.
  • A few months to a year of continuous use, depending on wind conditions and mode of use
  • Display goes to low power mode "sleep" when the wind speed drops to zero, or if removed from the bracket when not in use; wakes up automatically when the rotor begins spinning

Display Update Rate

~1Hz (1 second)

Rotor Diameter

~6 in (150 mm)

Sensor Type

Inspeed offers 3 sensor types: reed switch, Hall, and Optical

  • Reed switch/magnet provide 1 pulse per rotation (more available on request)
  • Hall chip anemometers provide 1 pulse per rotation (same)
  • Hall chip E-Vanes provide 5-95% of the input voltage (3-24VDC)
  • Optical anemometers provide 8 pulses per rotation

Wire

  • Standard length is 25 feet (8m)
  • Additional options include 50 ft (15 m) and 100 ft (30 m) or more
  • Custom lengths available upon request - tested OK to over 1,500 feet
  • The wire is provided stripped and unterminated (except FlexWire and Mag Mount which have jack connections)
Instructions

Inspeed Owners Manual for Cateye Velo7

Inspeed Owners Manual for anemometers with a Cateye Velo7.

Here is a link to the PDF: Instructions for Cateye Velo7

Setting the WS on a Cateye Velo7

This is how to set the WS for a Cateye Velo7. The video shows how to set the WS to 127 - which is for a D3 Inspeed rotor; consult you instructions (or this web site) for the correct WS for your anemometer/rotor.

Here is the link to the Setting the WS on a Cateye Velo7

Inspeed Owners Manual for Sigma MC10 Display

Here are the owners instructions for Inspeed anemometers with a Sigma MC10 display.

Link: Inspeed Instructions for Sigma MC10 Display

Setting the WS on a Sigma MC10

Here is a video on how to set the WS on a Sigma Sport MC10. Consult the Owners Instructions on the correct WS for your anemometer/rotor.

Link to the video on YouTube: Setting the WS on a Sigma MC10

Setting the WS on a Cateye Velo8

Here is a video on how to set the WS on a Cateye Velo8. Consult the Owners Instructions for the correct WS for your rotor.

Link to the video on YouTube: Setting the WS on a Cateye Velo8

Setting the WS on a Sigma BC1200

This is a video on how to set the WS on a Sigma Sport BC1200 (note that there were several versions of the BC1200 - this is just one of them - they all work more or less the same way). Consult the Owners Instructions to make sure you enter the correct WS for your Inspeed anemometer/rotor.

Link to the video on YouTube: Setting the WS on a Sigma BC1200
