Inspeed Windswitch

$149.00 USD
$149.00 USD

Inspeed's Windswitch is designed to turn devices on and off automatically based on the speed of the wind.

Features You'll Love:

  • 8 fixed settings to select from (dipswitch): 5, 10, 15, 20, 25, etc. mph
  • Automatic trip when the 5-second average wind speed exceeds the trip level setting
  • Automatic reset when the 5-second average wind speed drops below 85% of the trip setting
  • Max power going through the relay 3A.
  • Comes with 120VAC-12VDC converter power supply
Compare Ask a question Share
Product Details

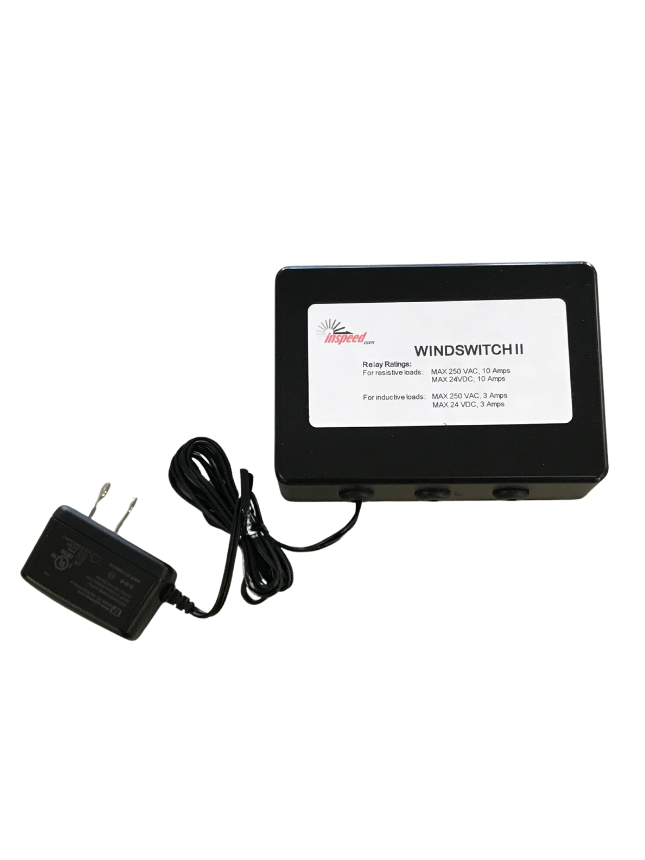

Inspeed's "Windswitch" Relay Controller

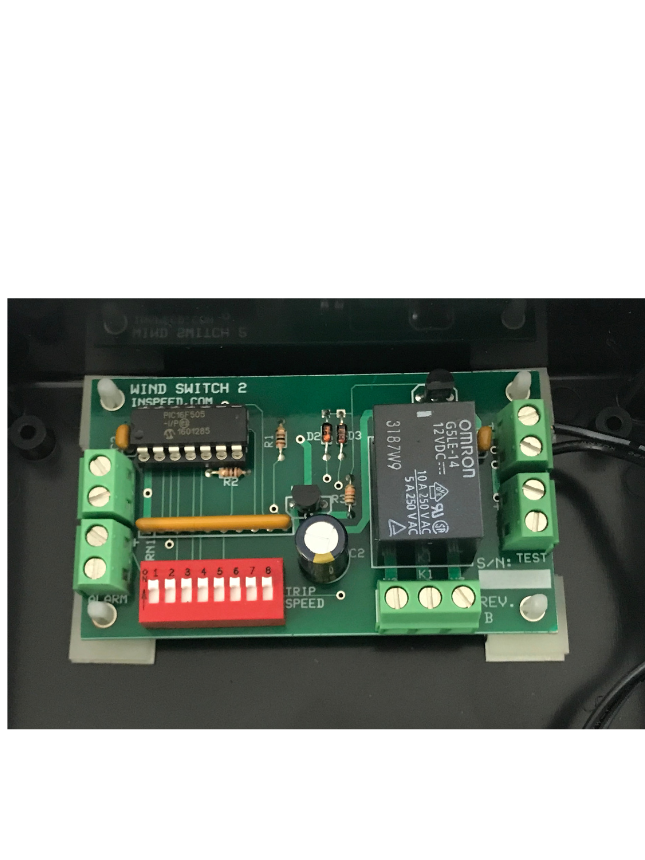

 The Inspeed WindSwitch is intended for turning electrical devices on and off based on the speed of the wind. A microprocessor is used to measure the speed of the wind, and take a 5-second average. When this 5-second average exceeds the selected trip speed, a single pole, 2-position relay is activated. When the 5-second average wind speed drops below the selected trip speed, the relay is deactivated.

It is fully compatible with the Inspeed Vortex Wind Sensor (not included), which can be situated up to hundreds of feet away.

Also compatible with the Inspeed Display Kit (bicycle speedometer calibrated for wind speed).

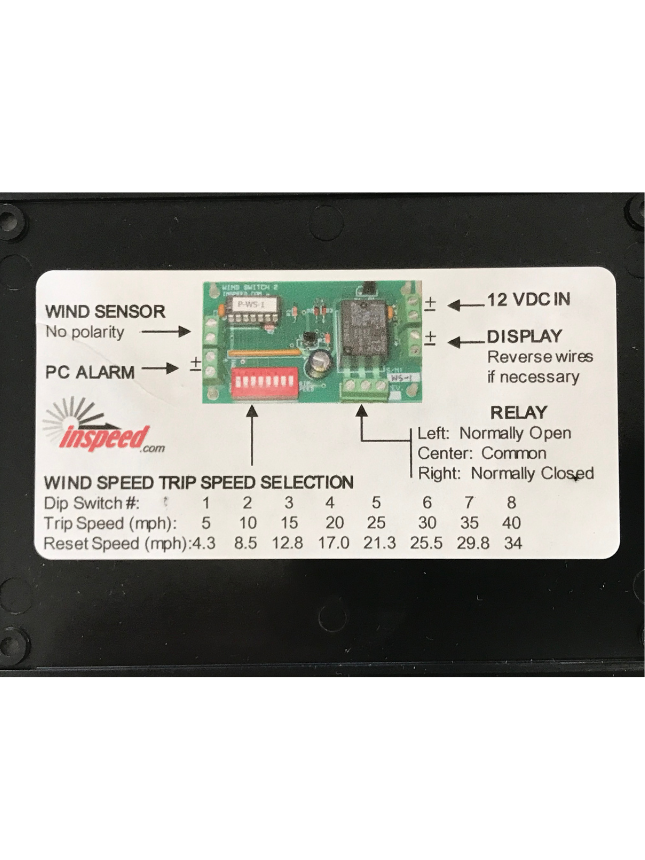

The way it works is simple:

  • connect your device to the screw terminals, which include Normally Open or a Normally Closed options.
  • select the dipswitch setting that represents your desired trip speed:
    5, 10, 15, 20, 25, 30, 35, or 40 mph.
    Note that the reset speed is 85% of the trip speed.
  • Plug in the Windswitch.
  • All set!

If you think you need more capability than this, have a look at the WindAlarm Switch.
