Inspeed WindAlarm Switch

Regular price $299.00 USD
Sale price $299.00 USD Regular price

Inspeed's WindAlarm Switch is designed to turn devices on and off automatically based on the speed of the wind.

Features You'll Love:

  • Fully programmable using on-board buttons; no computer required
  • Numerous programmable features (delay, latching, non-latching, etc.)
  • Two independently programmable relays
  • The relays can handle up to 10A
  • Originally designed for solar tracking - usable for a range of applications
  • Comes with 120VAC-12VDC converter power supply
Product Details

Inspeed's "WindAlarm Switch" Relay Controller

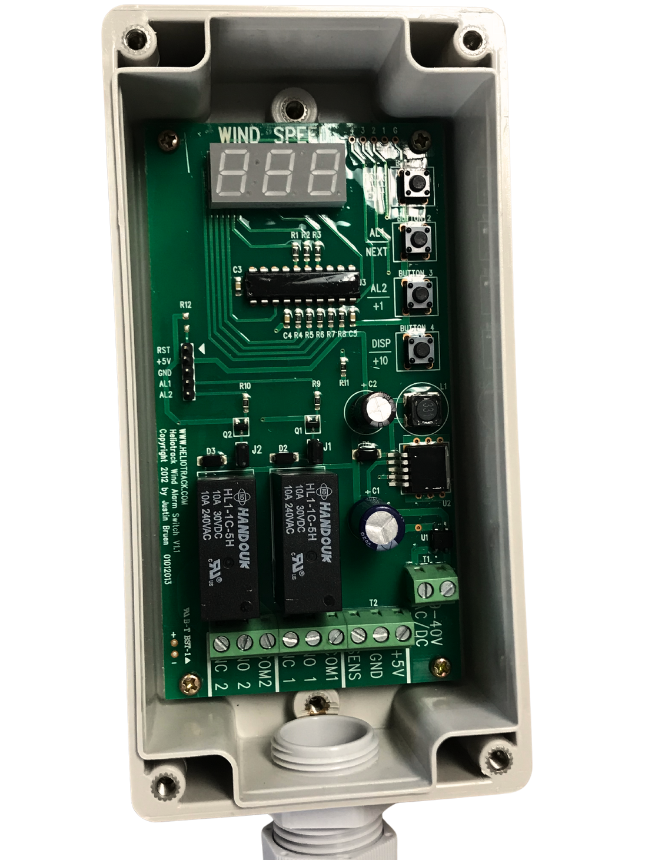

The Wind Alarm & Switch is a fully programmable dual relay controller for turning one or two electronic devices on or off based on the speed of the wind. It is manually programmed - no computer or software required. Includes a live display of wind speed with gust capture, two on-board relays, and terminal blocks for easy connection.
Suitable for fountains, awnings, solar panel control, and more...

NOTE: the WindAlarm & Switch is a device to switch things on and off, including alarms; it does not actually include an alarm...

Developed by Heliotrack for controlling solar trackers.

The WindAlarm Switch includes the following standard features:

  • Two independent relays rated to 250VAC/10A
  • Two timer modes: time between pulses and pulses per period.
  • Selectable units: mph, kph, knots, feet/sec, meters/sec, and user programmable
  • Wind speed averaging time: If pulses/period mode is selected, variable from 2 to 60 seconds
  • Trigger method: either relay can be triggered by either instant or average wind speed
  • Trigger threshold: user programmable from 1 to 255 (instant or average wind speed)
  • Turn off method: manual or user programmable from 1 to 255 (instant or average wind speed)
  • Latch timer: if selected, can be set from 1 to 255 minutes
  • Clear top box

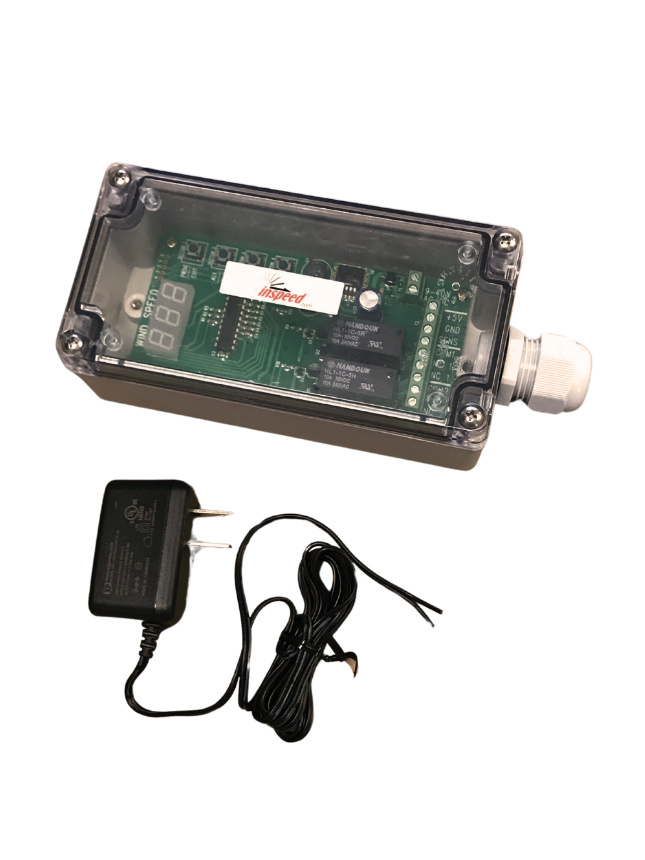

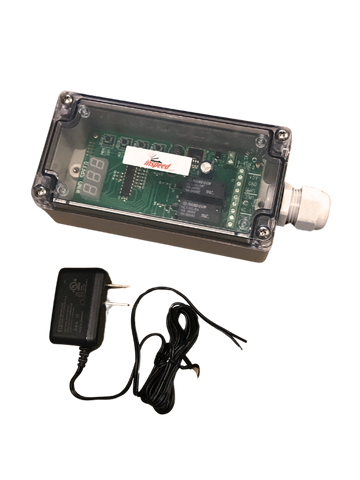

  • 12VDC (110VAC) Power supply included
  • On-board 3-digit LED display
  • and much more!.......

    If you think this is more than what you might need, have a look at the Windswitch.


    WindAlarm Switch Instructions

    These are the instructions for setting up and using the Inspeed-Heliotrack dual relay controller.

    Link: WAS instructions
