Inspeed Display Kits

$35.00 USD
$35.00 USD

Inspeed's Display Kits allow you to see the current, max, and average wind speeds for Inspeed Reed Switch Anemometers.

Features You'll Love:

  • Low cost
  • Auto-on (wind is blowing), Auto-off (no wind)
  • High speed updates (1 second or less)
  • Max and Average speeds captured until the user resets them
  • Virtually unlimited wire length with no effect on accuracy or performance
Compare Ask a question Share
Product Details

Inspeed Anemometer Display Kits

 We use bicycle speedometers for our display kits - for a few reasons:

  • They have dual, simultaneous displays:
    • 1: The current, instantaneous live wind speed
    • 2: Options for Max, Average, and other readings
  • They are inexpensive
  • They are high quality
  • They are battery powered, with auto-on and auto-off features to make the battery last as long as possible
  • They update quickly - at least once per second, higher at high speeds
  • The wire can be made very long (hundreds of feet) with no effect on accuracy or performance

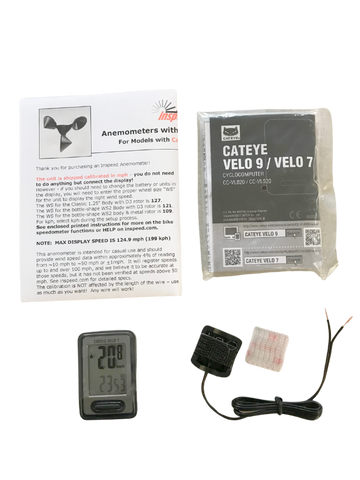

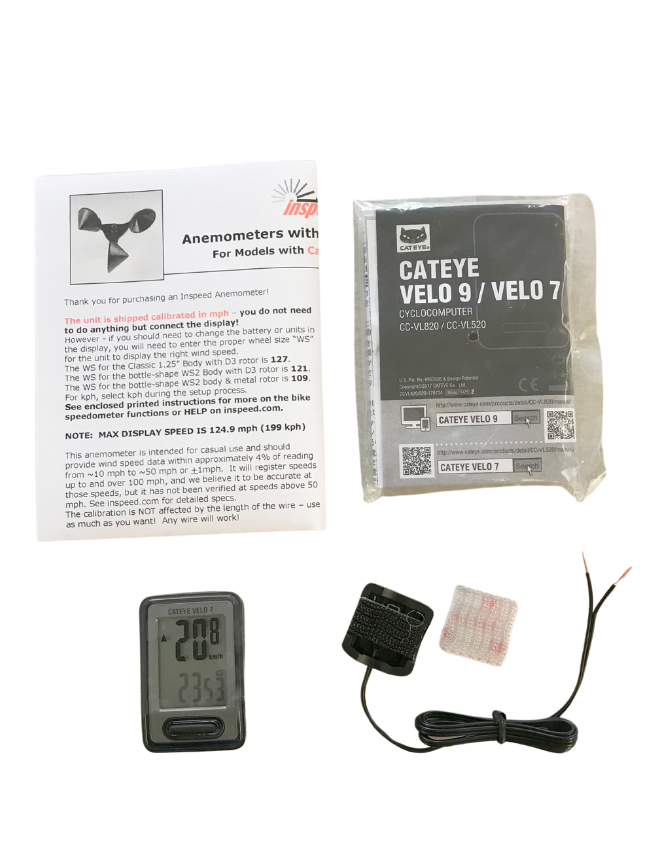

...to name a few.  The display kits include the following:

  • The LCD display, calibrated to mph (can be calibrated to mph, kph, or knots - under certain conditions)
  • The display mounting bracket, with high strength mushroom tape attached to the back
  • Wires stripped and ready for attachment to the wind sensor, or, as an option, with a 1/8" jack connection for certain models
  • An extra piece of self-adhesive mushroom tape to attach wherever you want to mount the display
  • The display instructions (so you can access/set other functions if you want)

We currently offer 2 models:

The Cateye Velo7 - which is limited to 125 mph, and

The Sigma Sport MC10  - which works up to 200 mph

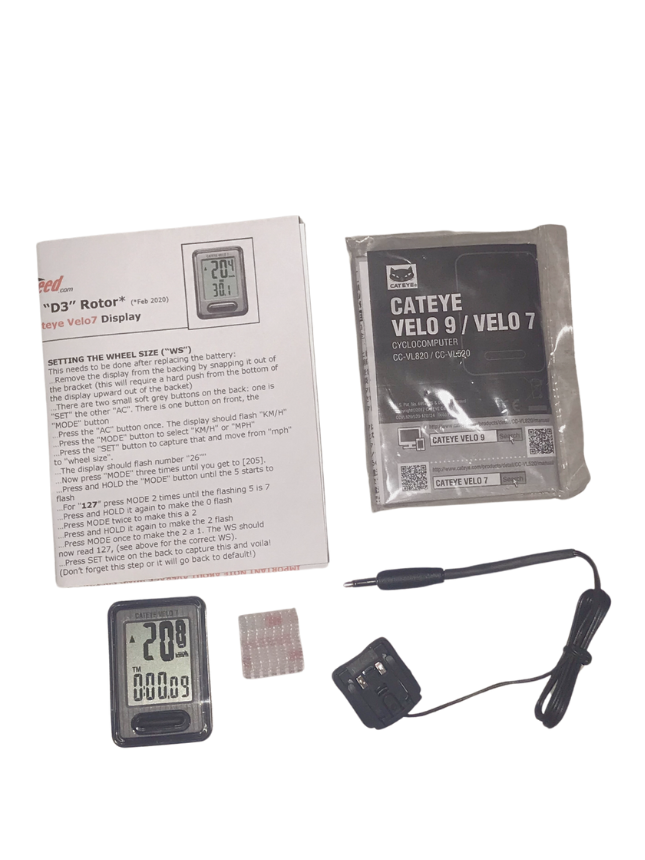

The display kits are available with bare wires or, optionally, a 1/8" jack connection (for use with the Inspeed Mag Mount or Flexwire anemometers).

NOTE:  the display kits are designed for use with INSPEED REED SWITCH anemometers.  The Hall sensor anemometers require external power to work (not included).

NOTE2:  take care when observing the Average Wind Speed; for cycling, the average speed calculations stop when the wind speed is below 1 mph, so the Average will be incorrect if there were periods of no wind.  There is a work-around - see the instructions!



Specifications
Instructions

Inspeed Owners Manual for Sigma MC10 Display

Here are the owners instructions for Inspeed anemometers with a Sigma MC10 display.

Link: Inspeed Instructions for Sigma MC10 Display

Inspeed Owners Manual for Cateye Velo7

Inspeed Owners Manual for anemometers with a Cateye Velo7.

Here is a link to the PDF: Instructions for Cateye Velo7

Setting the WS on a Sigma BC1200

This is a video on how to set the WS on a Sigma Sport BC1200 (note that there were several versions of the BC1200 - this is just one of them - they all work more or less the same way). Consult the Owners Instructions to make sure you enter the correct WS for your Inspeed anemometer/rotor.

Link to the video on YouTube: Setting the WS on a Sigma BC1200

Setting the WS on a Sigma MC10

Here is a video on how to set the WS on a Sigma Sport MC10. Consult the Owners Instructions on the correct WS for your anemometer/rotor.

Link to the video on YouTube: Setting the WS on a Sigma MC10

Setting the WS on a Cateye Velo8

Here is a video on how to set the WS on a Cateye Velo8. Consult the Owners Instructions for the correct WS for your rotor.

Link to the video on YouTube: Setting the WS on a Cateye Velo8

Setting the WS on a Cateye Velo7

This is how to set the WS for a Cateye Velo7. The video shows how to set the WS to 127 - which is for a D3 Inspeed rotor; consult you instructions (or this web site) for the correct WS for your anemometer/rotor.

Here is the link to the Setting the WS on a Cateye Velo7
